Engine |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | FM 2.0 CR | ||||||||||
| Emission | BS-IV | ||||||||||
| Type | 3 Cylinder, Common Rail | ||||||||||
| Displacement | 1947 cc | ||||||||||
| Max Output | 68 hp @ 3200 rpm | ||||||||||
| Max Torque | 175 Nm @ 1600 - 2400 rpm | ||||||||||
Transmission |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Manual, Synchromesh | ||||||||||
| No. of Gears | 5 Forward & 1 Reverse(5th gear overdrive) | ||||||||||
Axles |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front | Independent | ||||||||||
| Rear | Live Rigid | ||||||||||
Suspension |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front | Independent with Solid torsion bar, hydraulic telescopic shock absorbers and anti roll bar | ||||||||||
| Rear | Semi Elliptical Two Stage Leaf Springs with hydraulic telescopic shock absorbers | ||||||||||
Steering |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Mechanical (Power Steering - Optional) | ||||||||||
| Turning Radius | 6.5 metres | ||||||||||
Brakes |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Service Brakes | Hydraulic, Dual Circuit, Vacuum Assisted, (ABS with EBD) optional | ||||||||||
| Front | Disc Brakes | ||||||||||
| Rear | Drum Brakes with LSV | ||||||||||
| Parking | Mechanical on rear wheels | ||||||||||
Wheels & Tyres |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | 7.00 R15 | ||||||||||
Dimensions(mm) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wheel Base | 2750 | ||||||||||
| Overall Length | 4232 | ||||||||||
| Overall Width | 1790 | ||||||||||
| Overall Height | 2055 | ||||||||||
| Overhang Front | 707 | ||||||||||
| Overhang Rear | 775 | ||||||||||
| Ground Clearance | 180 | ||||||||||
Weights( kg ) |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Weights | 5+D & 8+D | 9+D | |||||||||
| Max. Permissible FAW | 1050 | 1090 | |||||||||
| Max. Permissible RAW | 1460 | 1785 | |||||||||
| Max. Permissible GVW | 2510 | 2875 | |||||||||

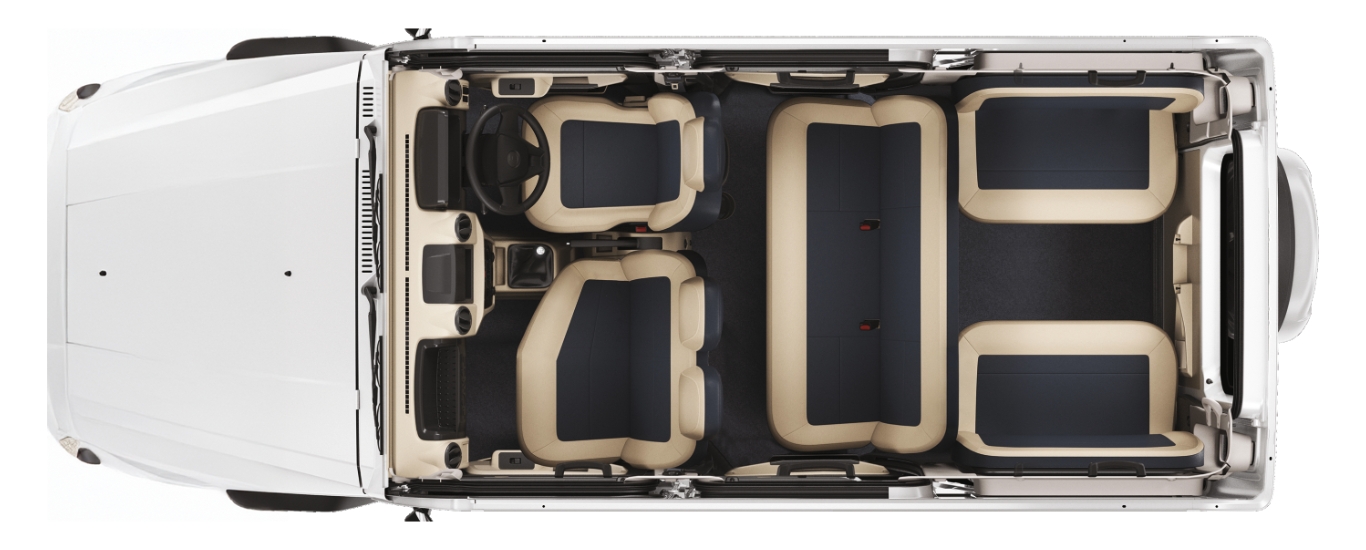

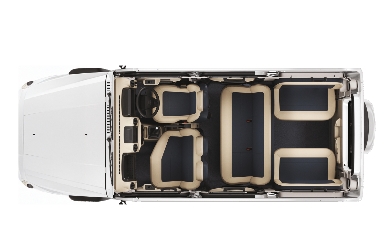

Seating Capacity |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Seating Capacity | 5+D, 8+D, 9+D | ||||||||||
