Home + Business + Traveller + Delivery Vans + Traveller Wider Body DV AC 4020WB

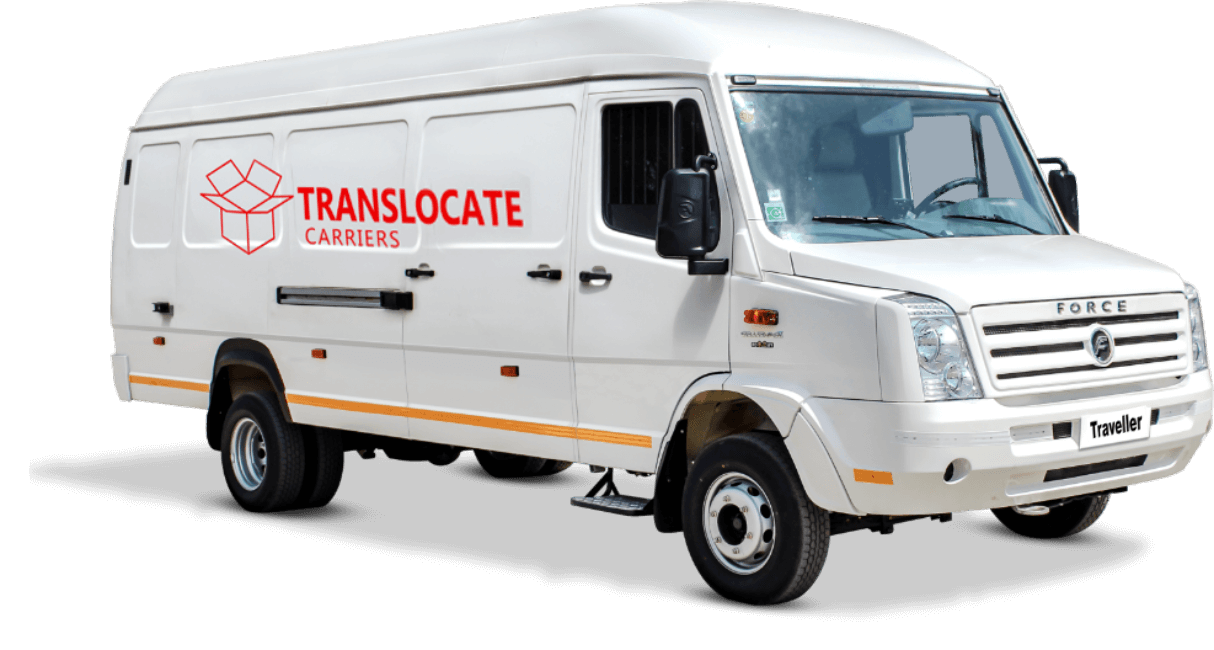

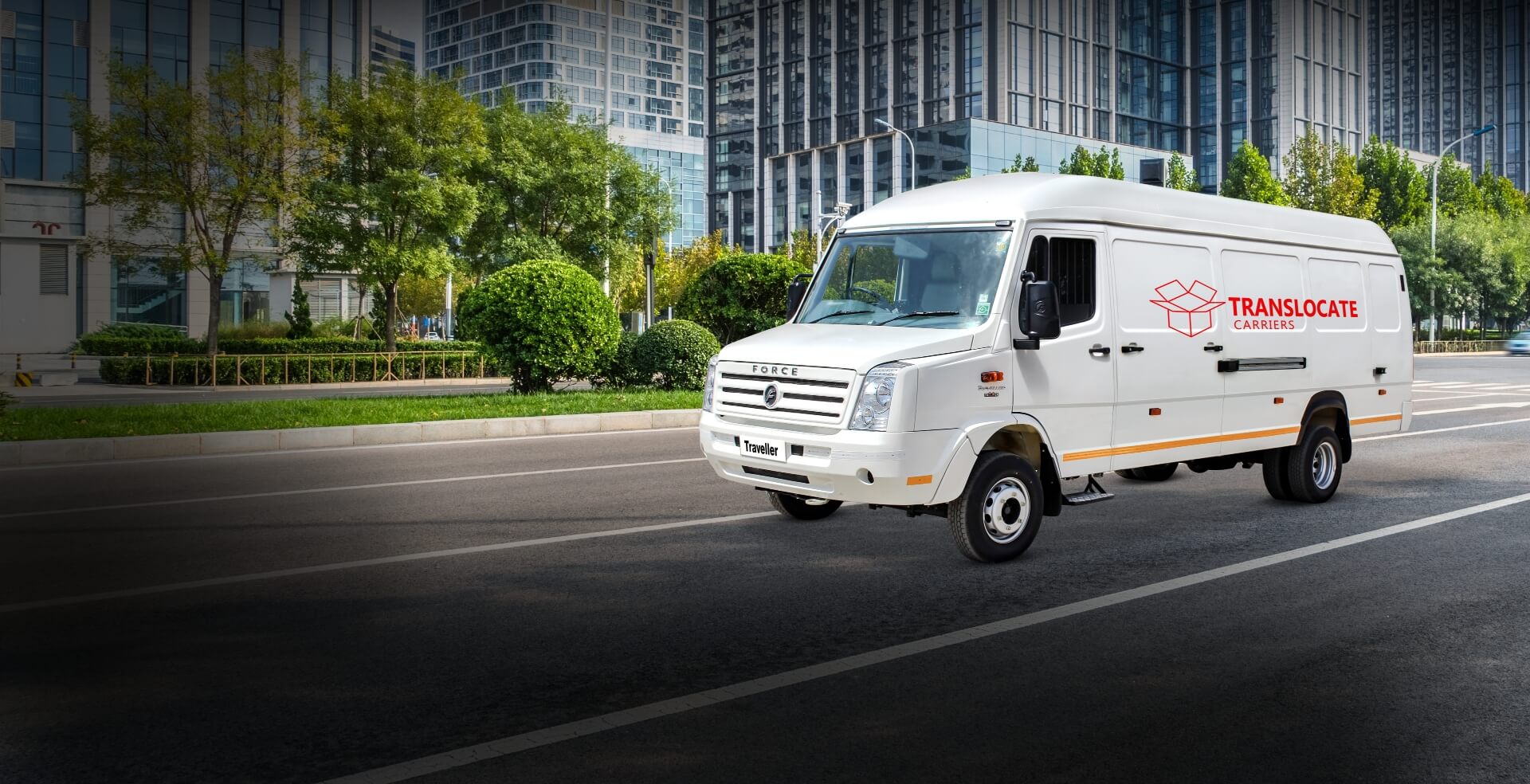

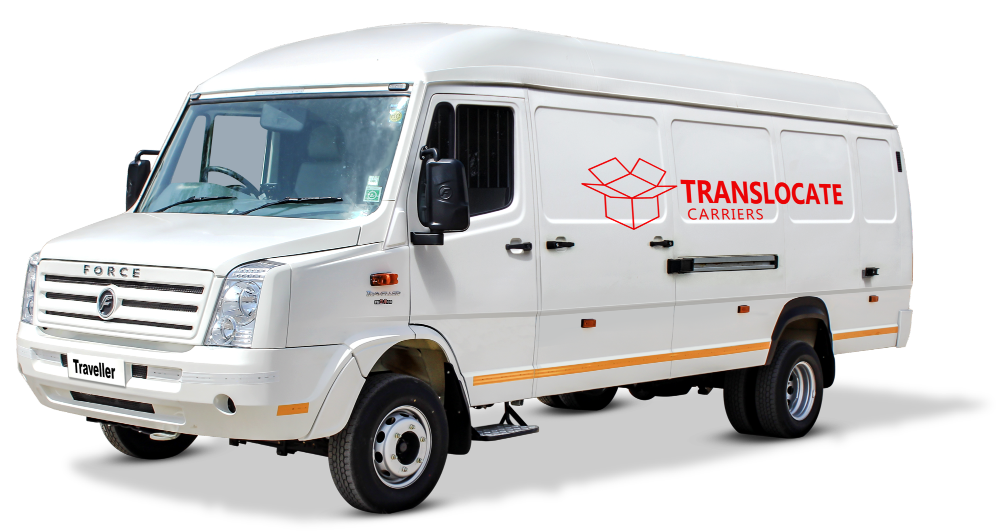

Traveller Wider Body DV AC 4020WB 1+D
Starting from
₹ 18.42 Lakh*
- Engine ParametersFM 2.6CR, BSVI.2, 114 hp, 350 Nm
- Seating Capacity1+D
- ComfortClosed, Monocoque body
- Convenience2480 kg PL, Easy loading Ht.
- SafetyABS, EBD, Disc Brake
Salient Features
Lighter & Stronger pressed steel body with Monocoque construction. Outstanding structural strength and unmatched durability. Robotic automated welding for best-in-class build quality
Powered by the Mercedes-derived FM 2.6 CR ED BS-VI engine. Best-in-class fuel mileage

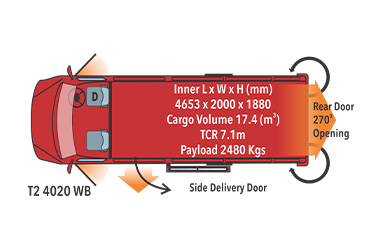

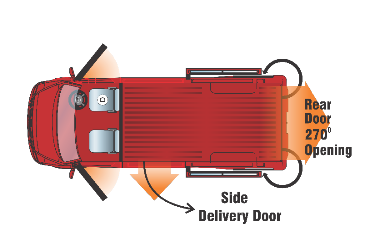

India’s first product to have the option of sliding doors on co-driver side in addition to 270° opening rear door. Ensures easy loading and unloading of cargo. Low loading height for T2 795 mm
Available in white, yellow & Red color options
Sliding door (option) for kerb side delivery
Payload 2480 kg
ABS and EBD
Technical Specifications
Seating Capacity
- Seating Capacity1+D
Body
- Body TypeMonocoque construction
Engine
- EngineFM 2.6CR ED
- EmissionBS-VI Stage 2
- Type4 Cyl. Common Rail, DI TCIC
- Bore x Stroke (mm)90.9 x 100
- Displacement2596 cc
- Max Output85kW (114 hp) @ 2950 rpm
- Max Torque350 Nm @ 1400 - 2200 rpm
Gearbox
- Make & ModelG32-5
- TypeSynchromesh
- No. of Gears5 Front + 1 Reverse
Dimensions (mm)
- Wheelbase4020
- Overall Length6970
- Overall Width2385
- Overall Height2670
- Ground Clearance180
Weight (kg)
- Maximum GVW5800
- Payload2480
Suspension
- Front & RearSpring Semi-elliptical
- Anti-Roll BarFront-Yes, Rear (Optional)
- Shock absorbersHydraulic telescopic double acting at front & rear
Wheels & Tyres
- Tyre Size235/65 R 16
- Tyre TypeRadial with Tubeless (6+1)
Locate a Dealer
Use our nationwide search to locate a Force Motors station close to you.
Find a Dealer
Disclaimer: On account of continuous Research and Development, specifications are subject to change. The data included herein is to be regarded as approximate. Accessories shown may not necessarily be part of standard equipment.
* Indicates Ex-showroom price.
