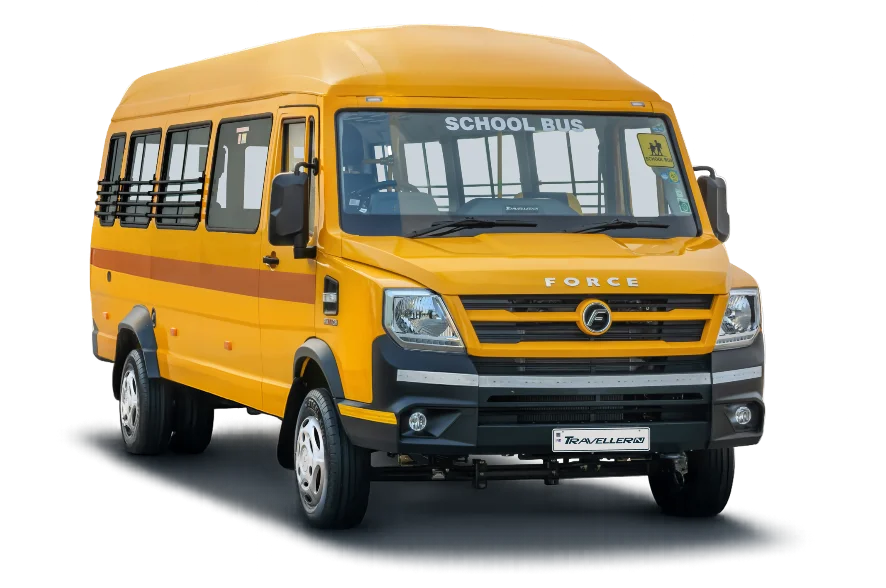

Traveller N Wider Body School Bus 4020WB CNG

Price Starts at ₹ 23.68 Lakh*

Traveller N Wider Body School Bus 4020WB CNG 30+A+D/33+A+D

Starting from ₹ 23.68 Lakh*
  • Engine Parameters
    FM 2.6CR, 114 hp, 350 Nm
  • Seating Capacity
    30+A+D/33+A+D
  • Comfort
    Monocoque body, low NVH
  • Convenience
    Easy entry-exit, CED coated body
  • Safety
    ABS, EBD, ESP
Traveller N Wider Body School Bus 4020WB CNG
Disclaimer: *The images shown are for illustration purposes only and may not be an exact representation of the product.

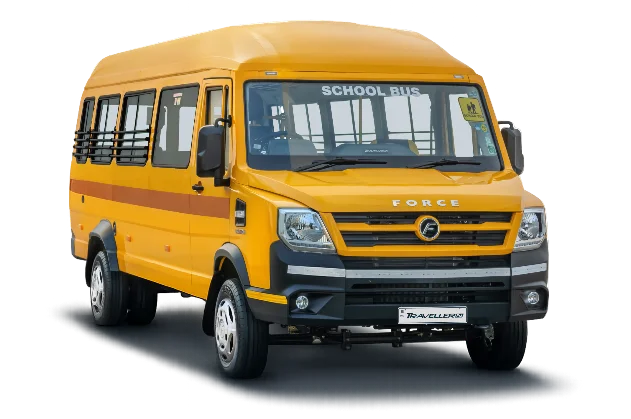

salient_features_section_image

Salient Features

Feature Image 1 Now, with Best-in-Class Fire Alarm & Protection System for more safety in case of fire
Feature Image 2 Mercedes-derived, highly powerful and fuel-efficient FM 2.6 DI TCIC powertrain
Feature Image 3 Synchromesh G-32 gearbox for effortless gear shifting
Feature Image 4 Monocoque body ensures total safety and car-like ride quality
Feature Image 5 Large internal rear view mirror and driver partition

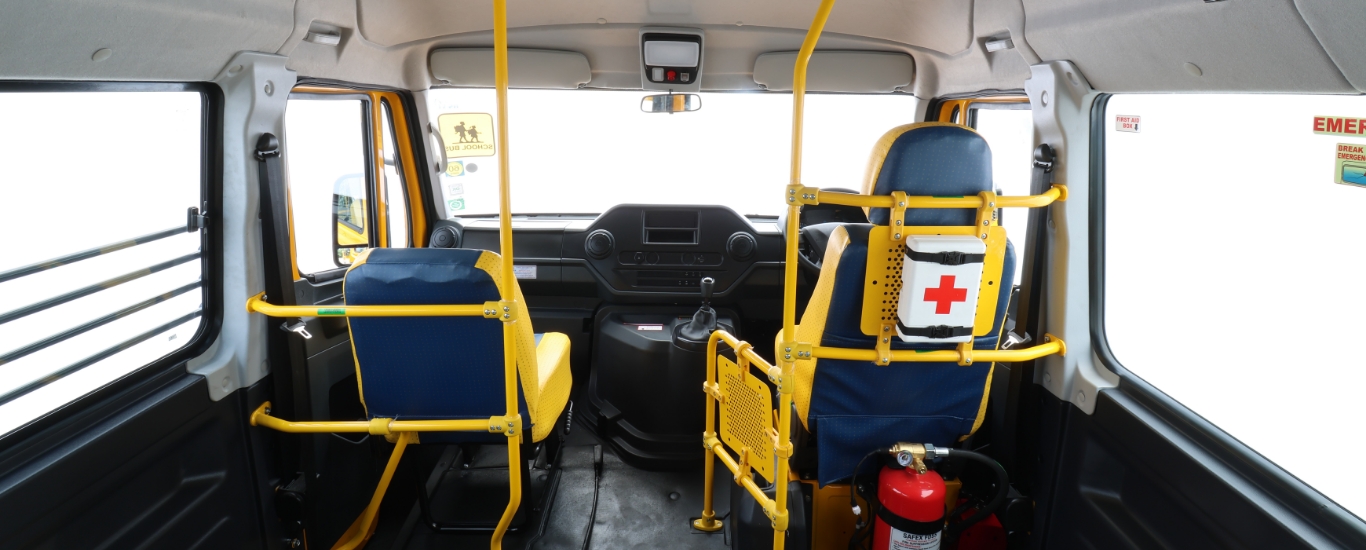

Feature Image 6 First aid kit & fire extinguishers in case of an emergency

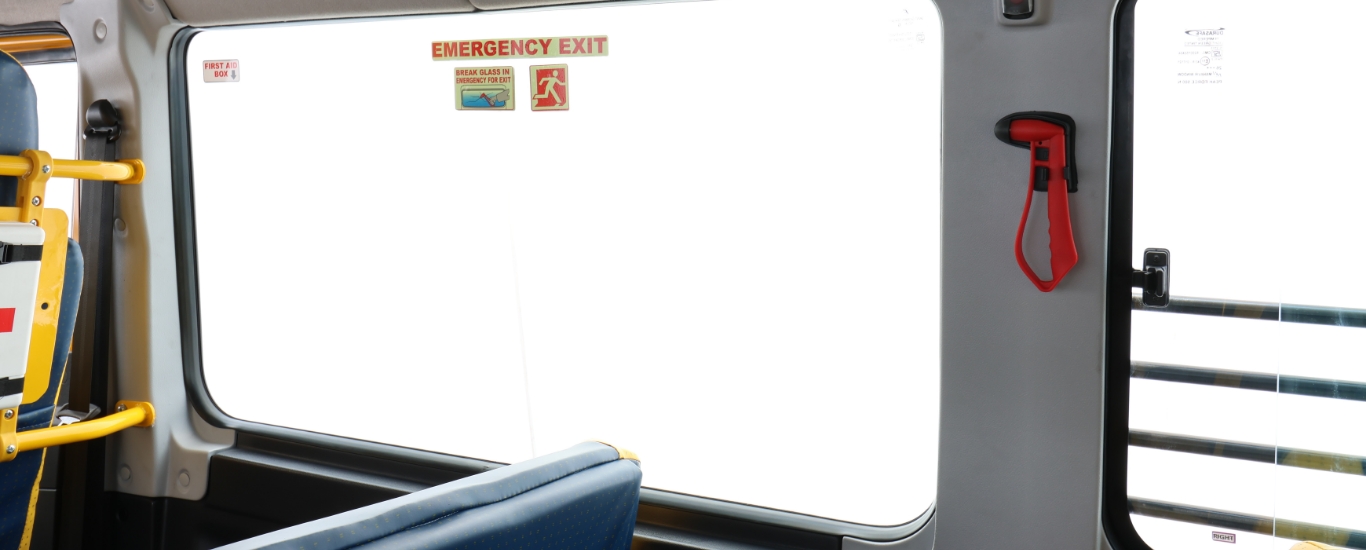

Feature Image 7 Emergency exit door for easy exit
Feature Image 8 30+A+D (3X2), 33+A+D (3X3)
Feature Image 9 ABS and EBD

Technical Specifications

Seating Capacity
  • Seating Capacity30+A+D/33+A+D
Body
  • Body TypeMonocoque construction
Engine
  • EngineFM 2.6 CNG ED
  • EmissionBS-VI Stage 2
  • TypeSpark Ignition MPFI TCIC
  • Displacement2596 cc
  • Max Output76Kw(102hp) @ 2800 rpm
  • Max Torque310Nm @ 1600-2400 rpm
  • Electrical System12V, 100 Ah
  • Fuel TypeCNG
Gearbox
  • Make & ModelFG32-5
  • TypeManual, Synchromesh on forward gears
  • No. of Gears5 Forward + 1 Reverse
Dimensions (mm)
  • Wheelbase4020
  • Overall Length6965
  • Overall Width2245
  • Overall Height2720
  • Ground Clearance180
Weight (kg)
  • Maximum GVW6190
Suspension
  • Front & RearSpring Semi-elliptical
  • Anti-Roll BarFront-Yes, Rear (Optional)
  • Shock absorbersHydraulic telescopic double acting at front & rear
Wheels & Tyres
  • Tyre Size235/65 R16
  • Tyre TypeRadial with Tubeless (6+1)
Disclaimer: On account of continuous Research and Development, specifications are subject to change. The data included herein is to be regarded as approximate. Accessories shown may not necessarily be part of standard equipment. * Indicates Ex-showroom price. * Indicates Ex-showroom price.
